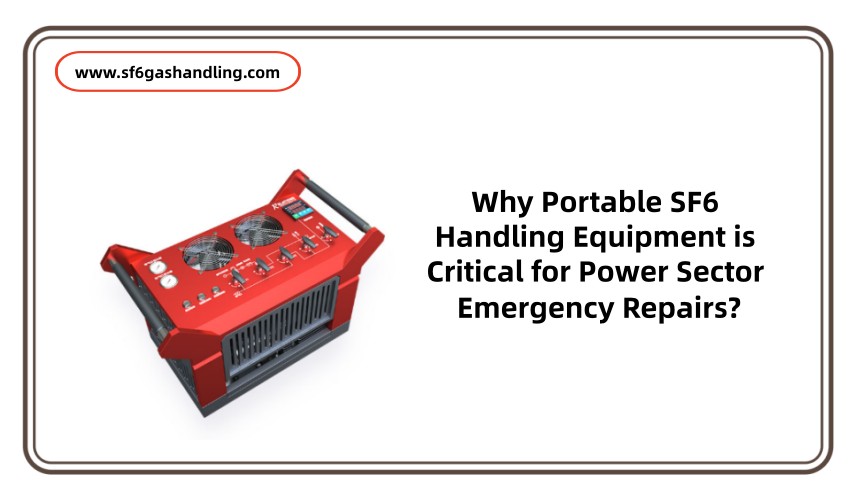

Why Portable SF6 Handling Equipment is Critical for Power Sector Emergency Repairs​?

Why Portable SF6 Handling Equipment is Critical for Power Sector Emergency Repairs​?

SF6 (sulfur hexafluoride) is widely used in high-voltage electrical equipment—such as circuit breakers, GIS (gas-insulated switchgear), and transformers—for its excellent insulation and arc-extinguishing properties. However, when these devices suffer from SF6 leaks, pressure drops, or contamination during field operations, emergency repairs become critical. Delays can lead to power outages affecting industries, households, and even public safety. This is where portable SF6 handling equipment for field emergency repair becomes indispensable, solving the limitations of traditional bulky equipment and ensuring rapid, safe, and efficient on-site maintenance.

Why Portable SF6 Handling Equipment Is Non-Negotiable for Field Emergency Repair

Traditional SF6 handling systems are often large, heavy, and require fixed power sources, making them impractical for field emergency scenarios—especially in remote areas like rural substations or mountainous transmission lines. Here’s why portable alternatives are a game-changer:

Rapid Response to Downtime: Power outages caused by SF6 equipment failures cost businesses an average of $5,600 per minute (per IEEE data). Portable SF6 equipment, with its lightweight design (usually 30–50kg) and wheeled or handheld structures, can be transported to the site in 1–2 hours, cutting setup time by 60% compared to traditional systems.

Compliance with Environmental & Safety Standards: SF6 is a potent greenhouse gas (23,500 times more impactful than CO₂ over 100 years). Portable equipment integrates SF6 recovery functions, preventing leaks during repair—meeting global regulations like IEC 60480 (SF6 recycling and handling) and EPA guidelines. It also includes built-in leak detectors and pressure safety valves to protect technicians from toxic SF6 decomposition byproducts (e.g., SO₂, HF).

Adaptability to Field Conditions: Field emergency sites often lack stable power or shelter. High-quality portable SF6 handling equipment features battery-powered operation (up to 8 hours of continuous use) and IP54-rated dust/water resistance, working reliably in temperatures from -20°C to 50°C—ideal for harsh environments like deserts or rainy regions.

Core Functions of Portable SF6 Handling Equipment for Emergency Repairs

To address field repair needs, reliable portable SF6 equipment must include four key functions:

SF6 Recovery: Extracts residual SF6 from faulty equipment (recovery rate ≥99.5%) to avoid waste and environmental harm. Advanced models can compress SF6 into high-pressure cylinders for reuse or recycling.

Purification & Drying: Removes moisture (to ≤5ppm) and impurities (e.g., oil, particles) from recovered or new SF6. Moisture in SF6 can cause equipment corrosion and insulation failure, so this step is critical for long-term repair effectiveness.

Precise Gas Charging: After repairs, the equipment refills the device with SF6 to the exact pressure (±0.01MPa) specified by the manufacturer, ensuring optimal insulation and arc-extinguishing performance.

Real-Time Monitoring: Equipped with LCD touchscreens to display SF6 pressure, temperature, and moisture levels. Some models support wireless data transmission to a central system, enabling remote supervision of repair progress.

How to Choose the Right Portable SF6 Handling Equipment for Field Emergencies

Not all portable SF6 equipment is suitable for emergency scenarios. Consider these factors to make an informed choice:

Compliance with Industry Standards: Prioritize equipment certified by IEC, ANSI, or local regulatory bodies (e.g., China’s GB standard). Certification ensures the device meets safety and performance benchmarks.

Portability & Durability: Opt for lightweight (≤50kg) models with rugged casings (e.g., aluminum alloy) to withstand transportation shocks. Wheels or telescopic handles enhance mobility on uneven field terrain.

Speed & Efficiency: Look for a recovery speed of ≥2m³/h and a charging speed of ≥1m³/h—faster speeds reduce repair time and minimize power outage duration.

Safety Features: Ensure the device has built-in overpressure protection, temperature alarms, and leak detection (sensitivity ≤1ppm). These features prevent accidents and protect technicians.

After-Sales Support: Choose brands that offer 24/7 technical support and quick access to spare parts (e.g., filters, hoses). In emergencies, downtime due to equipment failure is unacceptable.

Real-World Applications of Portable SF6 Handling Equipment

Portable SF6 handling equipment has proven its value across multiple field emergency scenarios:

Substation Circuit Breaker Repairs: When a 110kV circuit breaker in a rural substation developed an SF6 leak, a utility company used portable equipment to recover the remaining SF6, repair the leak, and recharge the breaker—restoring power in 3 hours (vs. 8 hours with traditional equipment).

Transmission Line GIS Maintenance: A wind farm in a mountainous area experienced a GIS pressure drop during a storm. Portable SF6 equipment was transported via ATV to the site, purified the contaminated SF6, and recharged the system—avoiding a 24-hour power outage for nearby communities.

Temporary Power Emergency Support: During a hurricane, a portable power station’s SF6 transformer suffered a leak. Emergency teams used battery-powered portable SF6 equipment to handle the gas, ensuring the station could supply power to a hospital within 4 hours.

As the power sector continues to expand—with more high-voltage equipment deployed in remote and harsh environments—portable SF6 handling equipment for field emergency repair will become even more critical. It not only ensures rapid restoration of power but also safeguards the environment and technician safety. When choosing equipment, prioritize compliance, portability, efficiency, and safety. By investing in the right portable SF6 handling solution, utilities and power companies can minimize downtime, reduce costs, and meet their environmental and operational goals. For any field emergency involving SF6 equipment, this tool is no longer a luxury—it’s a necessity.
