| Parameter Name | Parameter Value |
|---|---|
| Output Pressure | ≤1MPa |
| Gas Supplement Rate | （10~80）kg/h |
| Gas Supplement Pressure Error | ＜0.02 MPa±1% |
| Weighing Range | （0~20）kg |
| Weighing Accuracy | C5, 10g resolution |
| Gas Storage Cylinder | 40L@50kg SF₆ |

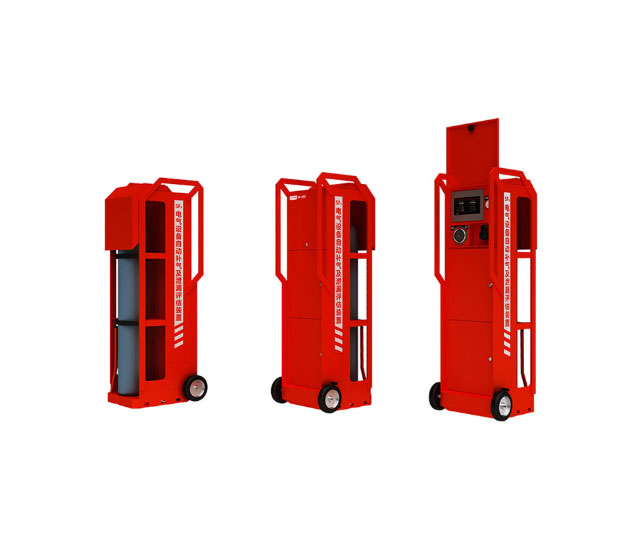

In the maintenance of high-voltage electrical equipment, the RF-AS2 Type SF6 Electrical Equipment Automatic Gas Filling and Leakage Assessment Device, with its excellent performance and convenient operation, has become an ideal choice for equipment such as GIS and GIL at 110 kV and above. This device is specifically designed for annual leakage assessment and live automatic gas filling operations, providing comprehensive intelligent support for your equipment maintenance.
10-inch Industrial Touch Screen: The intuitive operation interface allows you to get started easily and complete equipment settings and operations quickly.
Dual-mode Gas Filling: There are two gas filling modes, automatic and manual, which can flexibly meet various on-site requirements and achieve efficient and accurate gas filling operations.
Adjustable Output Pressure: The output pressure of the SF6 Electrical Equipment Automatic Gas Filling and Leakage Assessment Device can be adjusted arbitrarily according to actual needs, simplifying the operation process and improving work efficiency.
High-precision Weighing System: It is equipped with a high-precision weighing system with a weighing resolution of 10 g to ensure that every gas filling is accurate.
Precision Pressure-reducing and Pressure-stabilizing Valve: The SF6 Electrical Equipment Automatic Gas Filling and Leakage Assessment Device uses a precision pressure-reducing and pressure-stabilizing valve to ensure that the filled SF6 always remains in a gaseous state, ensuring the safe and stable operation of the equipment.
The RF-AS2 Type SF6 Electrical Equipment Automatic Gas Filling and Leakage Assessment Device not only improves the intelligent level of equipment maintenance but also brings you unprecedented convenience and efficiency. Choose us and make equipment maintenance simpler and more reliable!
| Parameter Name | Parameter Value |
|---|---|
| Output Pressure | ≤1MPa |
| Gas Supplement Rate | （10~80）kg/h |
| Gas Supplement Pressure Error | ＜0.02 MPa±1% |
| Weighing Range | （0~20）kg |
| Weighing Accuracy | C5, 10g resolution |
| Gas Storage Cylinder | 40L@50kg SF₆ |
| Charging Pipe | DN13*5m, one end with DN20 self-sealing joint, the other end with three-way to 3/8 ball valve |
| Data Remote Transmission | 4G/5G |
| Power Supply | AC220V, 50Hz |
| Weight | 65kg |
| Dimensions | 606mm×470mm×1700mm（L×W×H） |
