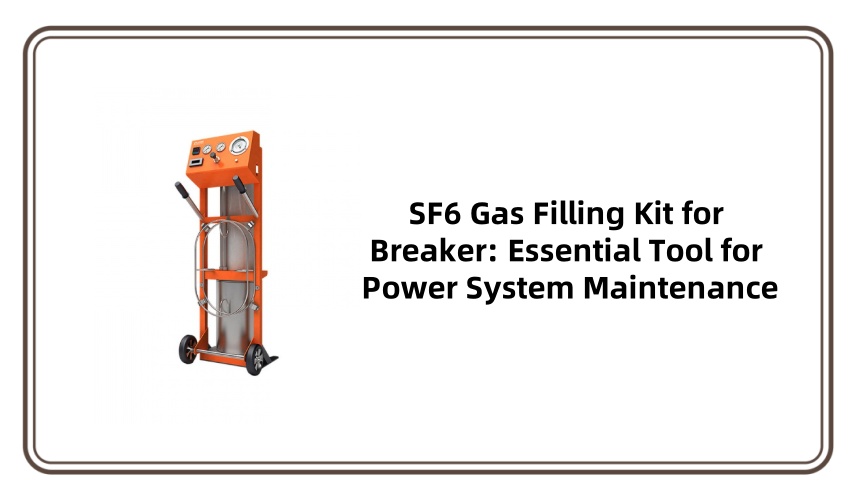

SF6 Gas Filling Kit for Breaker: Essential Tool for Power System Maintenance

SF6 Gas Filling Kit for Breaker: Essential Tool for Power System Maintenance

In power distribution networks, SF6 circuit breakers rely on sulfur hexafluoride gas to maintain insulation and arc-quenching capabilities. Over time, gas leakage can reduce breaker efficiency, leading to potential system failures. An SF6 gas filling kit for breaker is the solution—designed to safely replenish gas levels and restore breaker performance. This guide explains why these kits matter, their key features, and how to choose the right one.

Why SF6 Gas Filling Kits Are Critical for Breaker Maintenance

SF6 gas is non-flammable, chemically stable, and has superior dielectric properties, making it ideal for high-voltage breakers. However, even minor leaks can lower internal pressure, compromising the breaker’s ability to interrupt currents. An SF6 gas filling kit for breaker ensures precise gas replenishment, preventing:

Reduced insulation strength

Arc extinction failures

Unplanned downtime in power grids

Without proper filling equipment, manual gas refills risk over-pressurization or contamination—issues that an optimized SF6 breaker gas filling kit avoids.

Key Components of an SF6 Gas Filling Kit for Breakers

A high-quality SF6 gas filling kit for breaker includes specialized components to ensure safe, efficient operation:

1. Cylinder Connection Assembly

Features self-sealing valves and pressure-resistant fittings to create a leak-tight seal between the SF6 cylinder and the kit. This prevents gas waste and environmental release (SF6 is a potent greenhouse gas).

2. Precision Flow Control Valves

Regulate gas flow rate to avoid sudden pressure spikes, which can damage breaker internal components. Advanced kits include micro-adjustable valves for increments as low as 0.1 bar.

3. Dual-Scale Pressure Gauges

Measure both cylinder pressure (to monitor gas supply) and breaker internal pressure (to ensure target levels are reached). Digital gauges in modern SF6 gas filling kits for breakers offer real-time data logging.

4. High-Pressure Hoses

Reinforced with stainless steel braiding to withstand pressures up to 150 bar, these hoses connect the kit to the breaker’s filling port safely.

How to Use an SF6 Gas Filling Kit for Breaker: Best Practices

Proper operation of an SF6 breaker gas filling kit minimizes risks and ensures accuracy:

Pre-Operation Checks

Inspect hoses for cracks, verify gauge calibration, and confirm the breaker’s target pressure (typically 0.6–0.7 MPa for medium-voltage units).

Safety Protocols

Wear PPE (gloves, goggles) and work in ventilated areas. SF6 gas is non-toxic but displaces oxygen in confined spaces.

Filling Procedure

Connect the kit to the breaker, purge air from hoses, then slowly open the cylinder valve. Use the flow control to maintain a rate of 0.5–1 bar per minute until reaching the target pressure.

Post-Filling Verification

Close valves, disconnect the kit, and monitor breaker pressure for 30 minutes to check for leaks.

Choosing the Right SF6 Gas Filling Kit for Breaker Needs

When selecting a kit, consider:

Pressure Range: Match the kit’s capacity to your breaker’s requirements (low-voltage vs. high-voltage models).

Portability: Compact designs with carrying cases suit field maintenance, while stationary kits work for workshop use.

Compliance: Look for kits certified to IEC 60480 standards for SF6 handling to ensure environmental safety.

Benefits of Using a Professional SF6 Gas Filling Kit for Breaker

Precision: Avoid under/over-filling with calibrated tools, extending breaker lifespan.

Safety: Prevent gas leaks that harm the environment and operators.

Cost-Efficiency: Reduce gas waste and avoid expensive breaker replacements.

Investing in a reliable SF6 gas filling kit for breaker is essential for maintaining power grid reliability. By choosing a kit with robust components and following proper procedures, utilities and maintenance teams can keep SF6 breakers operating at peak performance for years.
