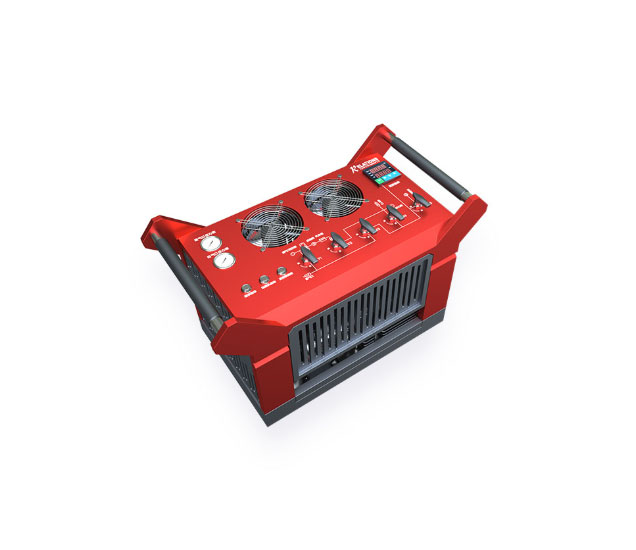

RF-S10 Portable SF6 Recovery Machine

RF-S10 Portable SF6 Recovery Machine

RF-S10 Portable SF6 Recovery Machine


Parameter NameParameter Value
Oil-free compressor displacement4m³/h
Final output pressure50bar
Vacuum pumpPumping speed 17m³/h, ultimate vacuum ≤0.1mbar
FilterFilters moisture, decomposition products and solid particles
Filtration particle size≤1μm
Cooling methodAir-cooled

Product Introduction

The RF-S10 portable SF6 gas recovery machine is a small-sized special equipment for SF6 gas recovery. It is mainly used for evacuating and recovering gas from SF6 electrical equipment and switches with special requirements in the workplace. This equipment integrates functions such as evacuation and gas recovery. During evacuation, it can display the change of vacuum degree in a timely manner. The gas recovery machine has a compact and reasonable structure, a beautiful and generous appearance, simple and clear operation, and convenient use and maintenance. It is a rare miniature equipment in industries such as power, metallurgy, petrochemical, etc.

Main Features

1. This portable SF6 gas recovery machine adopts an integrated design of evacuation and gas recovery functions, which can be used for multiple purposes.

2. It uses a high-performance two-stage oil-sealed vacuum pump for evacuation, with a high degree of vacuum. It can instantly detect and display the change of vacuum degree during external evacuation.

3. The portable SF6 gas recovery machine uses a self-sealing quick-connect external joint, which is simple to connect and has reliable sealing.

4. The RF-S10 portable SF6 gas recovery machine is equipped with pressure gauges at the inlet and outlet of the equipment, which is convenient for observing the recovery working state.

5. A pressure switch and a check valve are installed at the gas outlet of the compressor, which is safe and reliable.

6. A pipeline pressure reducer is built into the inlet connecting pipe, which is not limited by the pressure of the recovered gas.

Product Parameters

Parameter NameParameter Value
Oil-free compressor displacement4m³/h
Final output pressure50bar
Vacuum pumpPumping speed 17m³/h, ultimate vacuum ≤0.1mbar
FilterFilters moisture, decomposition products and solid particles
Filtration particle size≤1μm
Cooling methodAir-cooled
Inlet pressure gauge(-1~10) bar
Outlet pressure gauge(0~70) bar
Vacuum gauge(0.001~1000) mbar
Recovery pipeDN13*10m, one end with DN20 self-sealing joint, the other end with ball valve and cylinder joint
Recharge pipeDN13*3m, one end with DN20 self-sealing joint, the other end with ball valve and cylinder joint
Power supplyThree-phase five-wire system, AC380V, 50Hz
Dimensions1020mm×5500mm×700mm (L×W×H)
