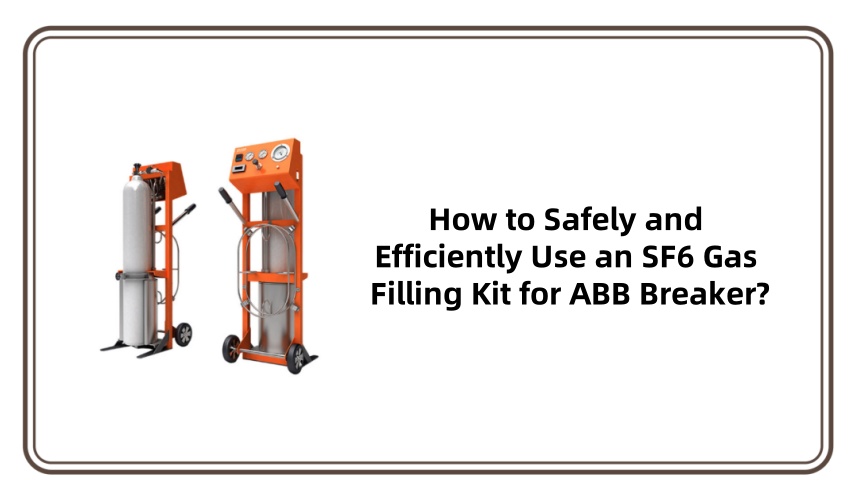

How to Safely and Efficiently Use an SF6 Gas Filling Kit for ABB Breaker?

How to Safely and Efficiently Use an SF6 Gas Filling Kit for ABB Breaker?

When it comes to ABB breakers, the role of SF6 gas is irreplaceable, thanks to its superior insulating and arc - quenching capabilities. And to keep these breakers in top working condition for a long time, a high - quality SF6 gas filling kit for ABB breaker is a must - have. In this article, we'll take a deep dive into everything you need to know about SF6 gas filling kits for ABB breakers.

Key Components of a Top - notch SF6 Gas Filling Kit for ABB Breaker

A first - rate SF6 gas filling kit for ABB breaker is made up of several key parts that work together to ensure a smooth and efficient filling process.

Gas Cylinder with Pressure Regulator: This is the heart of the kit. The gas cylinder holds the SF6 gas, and the pressure regulator attached to it allows for precise control of the gas flow. This precision is vital because over - or under - pressure can damage the ABB breaker.

Compatible Hoses: The hoses in the kit must be specifically designed to fit ABB breaker connections. They need to form a tight, leak - free seal to prevent any loss of SF6 gas, which is not only costly but also harmful to the environment.

Pressure Gauges: These gauges are essential for monitoring the pressure of the SF6 gas as it's being filled into the breaker. Accurate pressure readings help ensure that the breaker is filled to the exact level specified by ABB.

Vacuum Pumps (Advanced Kits): Many advanced SF6 gas filling kits for ABB breaker come with vacuum pumps. These pumps are used to remove air and moisture from the breaker before filling it with SF6 gas. Air and moisture can greatly reduce the effectiveness of SF6 gas, so their removal is crucial for maintaining the breaker's performance.

Step - by - Step Guide to Using an SF6 Gas Filling Kit for ABB Breaker

Using an SF6 gas filling kit for ABB breaker correctly is essential to avoid any issues with the breaker. Here's a step - by - step guide:

Inspect the Kit: Before you start, thoroughly check the entire kit for any signs of damage. Look for cracks in the hoses, loose connections, or any other issues that could cause leaks.

Prepare the ABB Breaker: Make sure the breaker is in the correct position and all valves are set properly. This ensures that the gas can flow into the right parts of the breaker.

Evacuate Air and Moisture (If Using a Vacuum Pump): If your kit has a vacuum pump, use it to remove all air and moisture from the breaker. This step is critical for keeping the SF6 gas pure.

Fill the SF6 Gas: Slowly start filling the breaker with SF6 gas while keeping a close eye on the pressure gauges. Follow ABB's recommended pressure levels strictly. Filling too quickly can lead to uneven pressure distribution.

Check for Leaks: After filling, check all connections and hoses for any leaks. Even a small leak can cause the SF6 gas to escape over time, affecting the breaker's performance.

Maintenance Tips for Your SF6 Gas Filling Kit for ABB Breaker

To keep your SF6 gas filling kit for ABB breaker working reliably, regular maintenance is necessary.

Clean and Inspect Hoses: Clean the hoses regularly to prevent contamination. Inspect them for cracks or wear and tear, and replace them if needed.

Calibrate Pressure Regulator and Gauges: Have the pressure regulator and gauges calibrated at least once a year. This ensures that they provide accurate readings, which is essential for proper filling.

Store Properly: When not in use, store the kit in a clean, dry place. Avoid exposing it to extreme temperatures or harsh weather conditions, as this can damage the components.

How to Choose the Right SF6 Gas Filling Kit for ABB Breaker

Selecting the right SF6 gas filling kit for ABB breaker can be a bit tricky, but here are some tips to help you make the right choice:

Check Compatibility: Make sure the kit is specifically designed for ABB breakers. Using a kit that's not compatible can lead to poor performance or even damage to the breaker.

Look for Reputable Manufacturers: Choose kits from well - known manufacturers that have a good reputation for producing high - quality products. These manufacturers are more likely to meet industry standards for safety and quality.

Consider Industry Certifications: Check if the kit has certifications from relevant industry bodies. This is a sign that the kit meets certain quality and safety standards.

Read Customer Reviews: Take the time to read customer reviews of the kit you're considering. This can give you valuable insights into its performance and reliability.

Seek Professional Recommendations: If you're not sure which kit to choose, ask for recommendations from professionals who work with ABB breakers regularly. They can share their experiences and help you make an informed decision.

In summary, an SF6 gas filling kit for ABB breaker is an essential tool for anyone who wants to keep their ABB breakers running smoothly and efficiently. By understanding its components, using it correctly, maintaining it properly, and choosing the right one, you can ensure that your ABB breakers perform at their best for years to come.
