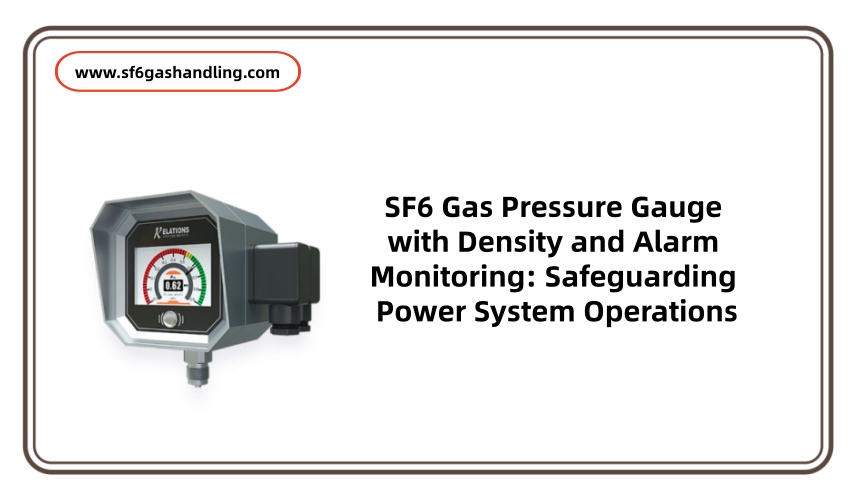

SF6 Gas Pressure Gauge with Density and Alarm Monitoring: Safeguarding Power System Operations

SF6 Gas Pressure Gauge with Density and Alarm Monitoring: Safeguarding Power System Operations

In high-voltage power systems, sulfur hexafluoride (SF6) gas is widely used for its excellent insulation and arc-extinguishing properties. However, SF6 gas leakage, pressure fluctuations, or density deviations can lead to equipment failures, power outages, or even safety hazards. This is where the sf6 gas pressure gauge with density and alarm monitoring becomes indispensable—it acts as a "guardian" for SF6-insulated equipment, ensuring real-time oversight of gas status and proactive risk prevention.

Core Functions: Beyond Basic Pressure Monitoring

Unlike traditional pressure gauges that only measure gas pressure, the sf6 gas pressure gauge with density and alarm monitoring integrates three key capabilities to address the unique needs of SF6 equipment:

• Accurate Pressure Measurement: Equipped with high-precision sensors (often with an error margin of ≤±0.5%), it tracks SF6 gas pressure in enclosures (such as circuit breakers or transformers) in real time, even in harsh environments with temperature variations (-40°C to 85°C) or vibration.

• Density Compensation & Monitoring: SF6 gas density is more critical than pressure for insulation performance, as pressure alone can be misleading due to temperature changes. The gauge uses built-in temperature sensors to automatically compensate for density, displaying the standard-density value (at 20°C) and alerting users if density drops below safe thresholds (e.g., 0.6 MPa for 110kV equipment).

• Multi-Level Alarm Systems: To avoid delayed responses, the gauge supports dual alarm triggers—local and remote. Local alarms use audible buzzers and LED indicators (red for critical faults, yellow for warnings), while remote alarms transmit data via RS485/Modbus protocols to control centers, enabling operation and maintenance personnel to intervene before failures occur.

Application Advantages: Enhancing Safety and Efficiency

In practical use, the sf6 gas pressure gauge with density and alarm monitoring delivers tangible benefits for power utilities and industrial facilities:

• Reduced Downtime: By detecting minor leaks or density drops early, it prevents unexpected equipment shutdowns. For example, a 220kV substation in China reported a 40% reduction in SF6-related outages after installing these gauges.

• Cost Savings: SF6 gas is expensive and greenhouse-intensive (with a GWP 23,500 times that of CO₂). The gauge’s leak detection helps minimize gas loss, cutting refilling costs and environmental impact.

• Simplified Maintenance: With remote monitoring capabilities, technicians no longer need to conduct frequent on-site inspections. Data can be accessed via cloud platforms, allowing for scheduled maintenance instead of reactive repairs.

How to Choose the Right Gauge: Key Selection Criteria

When selecting a sf6 gas pressure gauge with density and alarm monitoring, consider these factors to align with your equipment needs:

• Certifications: Opt for gauges compliant with international standards like IEC 60480 (SF6 gas handling) or ANSI C37.120 (high-voltage equipment), ensuring reliability.

• Sensor Durability: Choose gauges with corrosion-resistant materials (e.g., 316L stainless steel) to withstand SF6’s chemical stability and long-term use (typically 8–10 years of service life).

• Alarm Customization: Ensure the gauge allows adjusting alarm thresholds to match your equipment’s rated parameters (e.g., different thresholds for GIS vs. circuit breakers).

As power systems become more complex and reliant on SF6-insulated equipment, the sf6 gas pressure gauge with density and alarm monitoring is no longer an optional accessory—it is a foundational component for safe, efficient, and eco-friendly operations. By combining precise measurement, density compensation, and proactive alarms, it bridges the gap between real-time data and actionable insights, protecting both critical infrastructure and the environment. For power professionals seeking to upgrade their SF6 equipment oversight, investing in this gauge is a strategic step toward reducing risks and optimizing performance.
