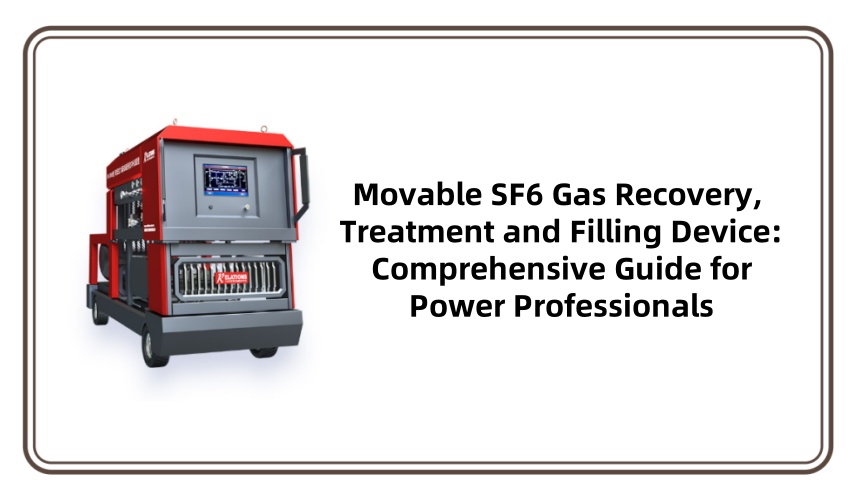

Movable SF6 Gas Recovery, Treatment and Filling Device: Comprehensive Guide for Power Professionals

Movable SF6 Gas Recovery, Treatment and Filling Device: Comprehensive Guide for Power Professionals

In modern power grids, efficient SF6 gas management is critical for maintaining circuit breaker reliability and environmental compliance. The movable SF6 gas recovery, treatment and filling device has become an indispensable tool, offering a all-in-one solution for on-site gas handling. This guide breaks down its functionality, technical specifications, and operational best practices to help maintenance teams make informed decisions.

What Is a Movable SF6 Gas Recovery, Treatment and Filling Device?

A movable SF6 gas recovery, treatment and filling device is a portable system engineered to perform three core functions in power maintenance:

• Recovering residual SF6 from decommissioned or faulty breakers

• Purifying contaminated gas to reusable standards

• Refilling treated or new SF6 into equipment with precise pressure control

Unlike fixed installations, its wheeled design and compact footprint (typically 120x80x100cm) enable easy transport between substations, wind farms, and industrial facilities—making it ideal for distributed power networks.

Key Technical Features of Movable SF6 Gas Systems

1. Recovery Performance

Top-tier movable SF6 gas recovery devices achieve 99.9% recovery efficiency even at low pressures (down to 5 mbar), minimizing gas waste. High-pressure compressors (150 bar max) handle both medium and high-voltage breaker models.

2. Treatment Capabilities

Multi-stage filtration systems in these devices:

• Remove moisture to <30 ppm via dual desiccant towers (molecular sieve + activated alumina)

• Eliminate oil contaminants using 0.1μm precision filters

• Reduce particulate matter to meet IEC 60480 purity standards for reuse

3. Filling Precision

Integrated digital pressure controllers allow filling accuracy within ±0.02 MPa, preventing over-pressurization. Flow rate adjustment (0.5-5 m³/h) accommodates different breaker sizes, from 11kV to 220kV units.

4. Mobility Enhancements

Heavy-duty pneumatic tires (10-inch diameter) with shock absorption handle rough terrain, while foldable handles and forklift pockets simplify loading/unloading. Battery-backed operation ensures functionality in remote sites without power.

Step-by-Step Operation of Movable SF6 Devices

Pre-Operation Setup

Inspect hose connections for wear; replace O-rings if damaged

Calibrate pressure gauges using NIST-traceable standards

Verify storage tank vacuum (<1 mbar) to maximize recovery efficiency

Gas Recovery Process

Connect inlet hose to breaker’s gas outlet valve

Activate recovery mode; monitor real-time pressure drop on LCD display

Automatic shutdown triggers when breaker pressure reaches 5 mbar

Purification Cycle

Transfer recovered gas to treatment module

Run 2-3 circulation cycles (each 15-20 minutes) for high-contamination cases

Check moisture sensor readings; repeat until <30 ppm

Precision Filling

Input target pressure via touchscreen (e.g., 0.6 MPa for 33kV breakers)

Use slow-fill mode (0.5 m³/h) for final pressure adjustment

Hold pressure for 30 minutes to confirm no leaks

Post-Maintenance

Drain condensate from moisture separator

Log operation data (volume recovered, purity levels) for compliance records

Why Power Utilities Choose Movable SF6 Gas Equipment

1. Cost Reduction: Reusing 1kg of treated SF6 saves 150−200 vs. purchasing new gas

2. Regulatory Compliance: Meets EPA (40 CFR Part 82) and EU F-gas regulations for emission control

3. Operational Flexibility: Services 5-8 breakers per day (vs. 2-3 with separate equipment)

4. Safety: Includes pressure relief valves, gas detection alarms, and anti-overfill protection

Selection Criteria for Movable SF6 Devices

When choosing a movable SF6 gas recovery, treatment and filling device, prioritize:

1. Recovery rate (minimum 99.5%)

2. Filtration capacity (≥500kg SF6 before filter replacement)

3. Certifications (ISO 14534, CE, UL)

4. After-sales support (calibration services, spare parts availability)

Investing in a high-quality movable SF6 gas system reduces operational costs while ensuring sustainable gas management. For power professionals, it’s not just equipment—it’s a critical component of reliable grid maintenance.
