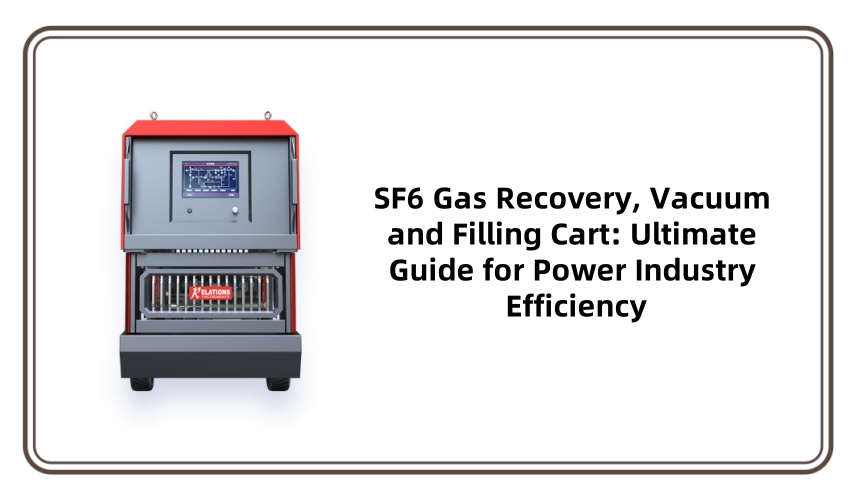

SF6 Gas Recovery, Vacuum and Filling Cart: Ultimate Guide for Power Industry Efficiency

SF6 Gas Recovery, Vacuum and Filling Cart: Ultimate Guide for Power Industry Efficiency

SF6 gas remains irreplaceable in high-voltage electrical systems, but its environmental impact demands precise handling. The SF6 gas recovery, vacuum and filling cart emerges as a critical solution, integrating three core functions to ensure safe, compliant, and cost-effective gas management. This guide breaks down its role, technical specifications, and strategic value for power utilities.

What Is an SF6 Gas Recovery, Vacuum and Filling Cart?

An SF6 gas recovery, vacuum and filling cart is a mobile unit engineered to manage sulfur hexafluoride gas throughout the lifecycle of electrical equipment. Unlike single-function tools, these carts combine:

• Gas recovery: Extracting used SF6 from decommissioned or maintenance-ready equipment

• Vacuum creation: Eliminating moisture and contaminants from empty chambers

• Precision filling: Recharging equipment with purified SF6 to exact pressure levels

This all-in-one design reduces operational downtime and ensures compliance with global environmental regulations.

Key Functions of SF6 Recovery, Vacuum and Filling Systems

1. High-Efficiency SF6 Gas Recovery

Modern SF6 gas recovery, vacuum and filling carts achieve recovery rates exceeding 99.6%, far surpassing the 95% industry baseline. Advanced models feature:

• Oil-free compressors to prevent gas contamination

• Multi-stage filtration systems that purify recovered gas to 99.9% purity

• Automated shutdown when storage cylinders reach capacity

This efficiency translates to significant cost savings—recovered SF6 can be reused directly, reducing reliance on new gas purchases.

2. Deep Vacuum Performance

Prior to refilling, SF6 gas recovery, vacuum and filling carts create a deep vacuum (as low as 0.1 mbar) to:

• Remove moisture (critical, as 500 ppm of water can reduce insulation strength by 30%)

• Eliminate air and particulate matter

• Prevent chemical reactions between contaminants and SF6

Digital vacuum gauges with real-time monitoring ensure consistency across GIS, circuit breakers, and transformers.

3. Precision Filling Technology

Accurate gas metering is vital for equipment longevity. These carts offer:

• Electronic mass flow controllers (±0.5% accuracy)

• Pressure-temperature compensation algorithms

• Automated cut-off when target pressure is reached

This prevents overfilling, which can cause seal degradation and gas leakage.

Applications in Power Infrastructure

SF6 gas recovery, vacuum and filling carts are indispensable across:

• Transmission grids: Maintaining GIS substations and high-voltage circuit breakers

• Renewable energy projects: Handling SF6 in wind farm switchgear

• Industrial facilities: Servicing on-site transformers and capacitor banks

• Maintenance teams: Supporting both scheduled inspections and emergency repairs

Utilities report a 40% reduction in SF6 emissions after adopting these systems, aligning with EU F-gas regulations and EPA standards.

How to Choose the Right SF6 Cart

When selecting an SF6 gas recovery, vacuum and filling cart, prioritize:

• Recovery speed (measured in kg/h)

• Vacuum pump capacity (cfm rating)

• Portability (weight and maneuverability for field use)

• Compliance with IEC 60480 (SF6 handling standard)

Reputable manufacturers offer models with integrated data logging to track gas usage, simplifying audit trails for regulatory compliance.

Future of SF6 Gas Management

As the power industry transitions to low-carbon solutions, SF6 gas recovery, vacuum and filling carts are evolving with:

• IoT integration for remote monitoring

• Hybrid systems compatible with emerging alternative gases

• Enhanced energy efficiency (low-power modes for field operations)

Investing in these advanced carts not only ensures regulatory compliance but also positions utilities for sustainable operations in a carbon-constrained world.
