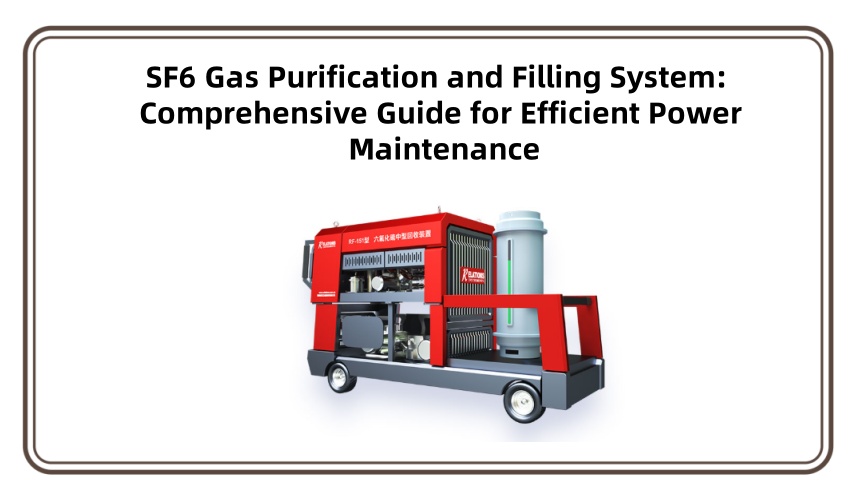

SF6 Gas Purification and Filling System: Comprehensive Guide for Efficient Power Maintenance

SF6 Gas Purification and Filling System: Comprehensive Guide for Efficient Power Maintenance

SF6 gas is a cornerstone of modern high-voltage electrical systems, valued for its superior insulation and arc-quenching capabilities. However, its performance degrades rapidly with moisture, oil residues, and decomposition byproducts—making the SF6 gas purification and filling system a critical investment for power utilities and industrial facilities. This guide explores how these systems work, their applications, and key factors to consider when selecting one.

How SF6 Gas Purification and Filling Systems Work

A high-quality SF6 gas purification and filling system integrates three core functions: recovery, purification, and controlled filling.

Purification Process: Contaminated SF6 gas passes through multi-stage filtration—including coalescing filters for oil removal, molecular sieves for moisture absorption (achieving dew points as low as -60°C), and activated carbon beds to eliminate toxic decomposition products like SO2 and HF. This restores gas purity to ≥99.9% by volume, meeting IEC 60376 standards for reuse.

Precision Filling: Equipped with digital pressure transducers and mass flow meters, the system injects purified SF6 into equipment with ±0.5% accuracy. This prevents over-pressurization risks and ensures optimal dielectric performance in GIS, circuit breakers, and transformers.

Applications Across the Power Equipment Lifecycle

The SF6 gas purification and filling system is indispensable across all stages of electrical equipment management:

• Manufacturing: Ensures new GIS and switchgear are filled with moisture-free SF6 during assembly, eliminating premature failure risks.

• Installation: Facilitates field commissioning by purging air from equipment and filling to exact pressure specifications.

• Maintenance: Recovers 95%+ of SF6 from decommissioned or faulty equipment, purifies it, and recharges into serviceable units—reducing gas procurement costs by 40-60%.

• Emergency Repairs: Enables rapid recharging of SF6 after arc-fault incidents, minimizing downtime in critical power networks.

Key Selection Criteria for SF6 Gas Systems

When evaluating an SF6 gas purification and filling system, prioritize these features:

• Purification Efficiency: Verify moisture removal capacity (target <50 ppmv) and impurity retention rates.

• Safety Compliance: Look for systems with pressure relief valves, gas leak detectors, and CE/UL certifications to meet workplace safety standards.

• Portability: Compact, trailer-mounted designs with forklift pockets enhance mobility for field operations.

• Smart Integration: Systems with touchscreen controls and data logging simplify compliance reporting for environmental regulations (e.g., EU F-gas directive).

Future Trends in SF6 Gas Management

As global regulations on fluorinated gases tighten, next-generation SF6 gas purification and filling systems are integrating IoT sensors for real-time purity monitoring and remote diagnostics. These advancements not only improve operational efficiency but also support sustainability goals by maximizing gas reuse and minimizing emissions.

Investing in a robust SF6 gas purification and filling system is more than a cost-saving measure—it’s a commitment to reliable power infrastructure, regulatory compliance, and environmental stewardship. By choosing the right system, facilities can extend equipment lifespans, reduce operational risks, and contribute to a greener energy sector.
