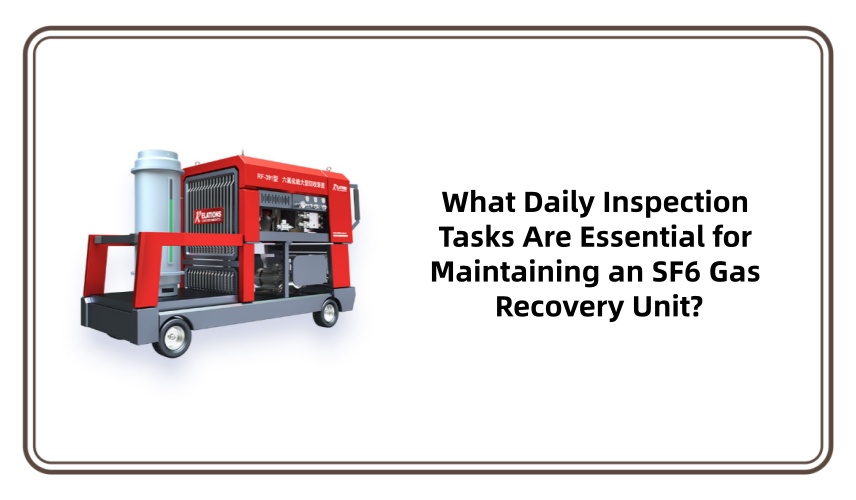

What Daily Inspection Tasks Are Essential for Maintaining an SF6 Gas Recovery Unit?

What Daily Inspection Tasks Are Essential for Maintaining an SF6 Gas Recovery Unit?

SF6 gas recovery units are indispensable for high-voltage power systems, as they enable safe recycling, purification, and storage of SF6—an insulating gas with a global warming potential (GWP) 23,500 times higher than CO₂. Neglecting maintenance can cut the unit’s lifespan by 40% (dropping from 8–12 years to just 5–7 years) and trigger costly SF6 leakage fines (up to $37,500 per violation under EPA’s Greenhouse Gas Reporting Program). This guide breaks down how to maintain SF6 gas recovery unit effectively, with actionable steps to boost performance, reduce downtime, and meet global standards like IEC 60480.

1. Daily Maintenance Checklist for SF6 Gas Recovery Unit (10–15 Mins/Day)

Daily checks prevent 60% of unexpected failures by catching minor issues early. Follow this structured checklist:

• Visual & Leak Inspection: Examine the unit’s shell for cracks, corrosion, or loose fasteners. Use a portable SF6 gas detector (e.g., Draeger X-am 8000) to scan hose connections, valve joints, and flange seals—any reading above 100 ppm signals a leak. For hard-to-reach areas, use a soap solution to identify bubble formation (a low-cost alternative to detectors).

• Gauge & Temperature Verification:

High-pressure gauge (SF6 storage tank): Maintain 0.8–1.2 MPa (check against the unit’s nameplate rating—never exceed 1.3 MPa).

Low-pressure gauge (vacuum system): Ensure readings stay below 5 Pa (a rise above 10 Pa indicates vacuum pump inefficiency).

Vacuum pump oil temperature: Keep it under 80°C (use a infrared thermometer for accurate measurements; overheating degrades oil viscosity).

• Hose & Cable Integrity: Inspect flexible hoses for brittleness, bulges, or kinks—replace hoses older than 2 years (even without visible damage, SF6’s chemical properties degrade rubber over time). Check power cables for fraying at terminals; tighten loose connections with a torque wrench (follow manufacturer specs: typically 8–10 N·m for copper terminals).

• Control Panel Functionality: Test indicator lights (power, operation, fault) and confirm emergency stop buttons cut power within 1 second. Log any unresponsive lights—this often precedes electrical component failure.

2. SF6 Gas Recovery Unit Maintenance Schedule: Quarterly & Annual Tasks

Scheduled deep maintenance addresses hidden wear that daily checks miss. Align tasks with IEC 61634 (SF6 handling equipment standards) for compliance.

2.1 Quarterly Maintenance (Every 3 Months)

• Filter Replacement:

Oil filter: Swap with OEM-approved filters (e.g., Atlas Copco 1613750100) to prevent sludge buildup in the compressor.

Gas filter: Replace cartridges to maintain SF6 purity above 99.9% (a clogged filter can reduce recovery speed by 25%—test purity post-replacement with a dew point analyzer).

• Sealing Gasket Service: Replace gaskets on valves and tank lids with fluorine-resistant materials (Viton or EPDM). Clean gasket seats with isopropyl alcohol to remove residue—this prevents uneven sealing and leaks.

• Lubrication Top-Up:

Compressor: Use ISO VG 68 lubricating oil (e.g., Shell Corena S4 R68) and fill to the “MAX” mark on the oil sight glass.

Vacuum pump: Refill with pump-specific oil (e.g., Edwards Ultragrade 70) every 500 operating hours—never mix oil brands (this causes foam formation and pump damage).

2.2 Annual Maintenance (Every 12 Months)

• Performance Validation Test:

Pumping speed: Use a flow meter to measure airflow—should remain ≥80% of the rated value (e.g., 40 m³/h for a 50 m³/h unit). If low, disassemble the vacuum pump and clean rotors with a non-corrosive solvent (avoid water-based cleaners).

SF6 recovery rate: Conduct a test with a 100L SF6 cylinder—recovery should take ≤2 hours (target: ≥99% of gas recovered). Slow rates often indicate a faulty check valve (replace with OEM parts).

• Storage Tank Inspection:

Empty the tank and clean the interior with a lint-free cloth (avoid abrasive materials that scratch the tank).

Perform a hydrostatic test at 1.5× rated pressure (e.g., 1.8 MPa for a 1.2 MPa tank) and hold for 30 minutes—no pressure drop means the tank is leak-free.

• Electrical System Audit:

Test motor insulation resistance with a megohmmeter (500V range)—readings ≥50 MΩ are acceptable; <10 MΩ means rewinding is needed.

Replace contactors and relays older than 5 years (even if functional—age-related wear causes intermittent failures).

3. Critical Component Maintenance for SF6 Recovery Units (Reduce 70% of Faults)

Focus on high-stress parts—they account for most downtime.

3.1 Vacuum Pump (The “Heart” of the Unit)

• Change oil every 500 operating hours (or sooner if oil turns amber). Drain old oil completely (tilt the pump slightly to remove residue) before refilling.

• Clean the inlet filter monthly: Remove the filter element, rinse with compressed air (2–3 bar pressure), and soak in degreaser if oily.

• Inspect rotor seals annually: Replace worn seals to prevent air ingress (air contamination reduces SF6 purity and damages the unit).

3.2 Compressor

• Check discharge pressure weekly (max 1.5 MPa)—a sudden spike indicates a blocked condenser. Clean condenser fins with a soft brush (avoid bending fins) to restore airflow.

• Inspect valve plates every 6 months: Look for cracks or carbon deposits (use a magnifying glass). Replace plates if damaged—leaky valves reduce compression efficiency by 30%.

3.3 SF6 Dryer

• Replace desiccant (molecular sieve 13X) every 6 months. After replacement, purge the dryer with nitrogen (0.5 MPa) for 10 minutes to remove moisture—this ensures the desiccant works immediately.

• Test dew point monthly: Use a dew point meter to measure SF6 moisture content (target: ≤-60°C). A high dew point (>-50°C) means the desiccant is saturated and needs replacement.

4. SF6 Gas Recovery Unit Troubleshooting: Step-by-Step Solutions

Use this structured approach to resolve common issues—log all fixes in a maintenance log (sample template available here for download).

5. Safety & Environmental Compliance (Avoid Fines)

Maintain compliance with EPA (US), EU ETS, and IEC 60480 standards:

• PPE Requirements: Wear nitrile gloves (SF6-resistant), safety goggles with side shields, and a NIOSH-approved respirator (for SF6 decomposition products like SO₂—use a cartridge rated for acid gases).

• Ventilation: Use exhaust fans with a minimum airflow of 10 air changes per hour (ACH) in the maintenance area—SF6 accumulates in low spots (use a gas monitor to check levels <1,000 ppm).

• Leak Handling: Collect leaked SF6 with a portable recovery unit (e.g., DILO B143R11) and transfer to a certified storage cylinder. Never vent SF6—EPA fines start at $1,000 per pound released.

• Documentation: Keep records of maintenance, SF6 purchases, and leak tests for 5 years (required for regulatory audits). Link to EPA’s SF6 Compliance Guide for official requirements.

Properly maintaining your SF6 gas recovery unit isn’t just about extending lifespan—it’s about avoiding costly downtime, meeting environmental regulations, and protecting power system reliability. By following this daily checklist, quarterly/annual schedule, and component-specific tips, you’ll keep the unit operating at ≥90% efficiency for a decade. For personalized support, contact your unit’s manufacturer (e.g., DILO, Siemens) for custom maintenance plans. Download our free SF6 Gas Recovery Unit Maintenance Log to track tasks and stay compliant.
