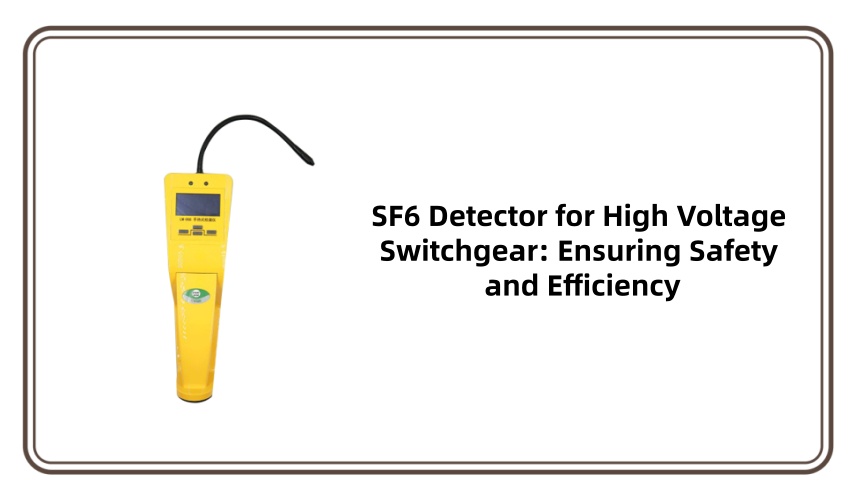

SF6 Detector for High Voltage Switchgear: Ensuring Safety and Efficiency

SF6 Detector for High Voltage Switchgear: Ensuring Safety and Efficiency

High voltage switchgear is a core component of power grids, responsible for controlling, protecting, and isolating electrical equipment. Sulfur hexafluoride (SF6) gas is widely used in this switchgear due to its excellent insulation and arc-extinguishing properties—critical for maintaining stable operation in high-voltage environments. However, SF6 is a potent greenhouse gas (with a global warming potential 23,500 times that of CO₂ over 100 years) and poses serious risks if leaked: it can reduce insulation performance, trigger equipment failures, and harm human health in confined spaces. This is where an SF6 detector for high voltage switchgear becomes indispensable.

1. Why SF6 Detection Is Non-Negotiable for High Voltage Switchgear

The reliability of high voltage switchgear directly impacts power grid safety. When SF6 leaks occur, even in small volumes, the consequences can be severe:

Equipment Malfunction: Reduced SF6 pressure weakens insulation, increasing the risk of electrical arcing, short circuits, or even switchgear explosions. This can lead to unplanned power outages, disrupting industrial production and residential supply.

Environmental Harm: Uncontrolled SF6 emissions contribute significantly to climate change. Regulatory bodies worldwide (such as the EU’s F-Gas Regulation and the U.S. EPA’s guidelines) mandate strict monitoring of SF6 leaks, making detection a compliance requirement.

Health Risks: In poorly ventilated areas, leaked SF6 can displace oxygen, causing suffocation. It also decomposes into toxic byproducts (e.g., sulfur dioxide, fluoride compounds) under electrical arcs, posing respiratory hazards to maintenance personnel.

An SF6 detector for high voltage switchgear addresses these risks by enabling real-time or on-demand leak monitoring, ensuring early detection and rapid response.

2. Key Features to Prioritize in an SF6 Detector for High Voltage Switchgear

Not all SF6 detectors are suitable for high voltage switchgear—industrial-grade environments demand specialized capabilities. When selecting a detector, focus on these critical features:

High Detection Precision: The detector should measure SF6 concentrations with accuracy down to 0.1 ppm (parts per million), as even tiny leaks (≤0.1% annual leakage rate, the industry standard) can escalate into issues. Look for models with advanced sensors (e.g., photoacoustic spectroscopy or infrared technology) for stable, low-drift performance.

Fast Response Time: In emergency scenarios, delays matter. Opt for detectors with a response time of <3 seconds to quickly locate leaks during maintenance or fault investigate.

Rugged Design: High voltage switchgear is often installed in harsh environments (outdoor substations, industrial facilities with dust or vibration). The detector should have an IP65/IP67 protection rating to resist water, dust, and impact, and operate within a wide temperature range (-20°C to 60°C).

Portability & Ease of Use: Maintenance teams need to inspect multiple switchgear units. A lightweight (≤1.5 kg), handheld detector with a clear LCD screen and one-button operation simplifies on-site testing. Wireless connectivity (Bluetooth/Wi-Fi) is a bonus, allowing data sync to smartphones or cloud platforms for record-keeping.

Compliance with Standards: Ensure the detector meets international norms like IEC 61779 (for SF6 gas monitoring) and CE/FCC certifications, guaranteeing reliability and regulatory compliance.

3. Practical Applications of SF6 Detectors in High Voltage Switchgear

An SF6 detector for high voltage switchgear supports multiple stages of switchgear lifecycle management:

Routine Inspections: During scheduled maintenance, technicians use handheld detectors to scan switchgear joints, valves, and gaskets—common leak points. This proactive approach prevents minor leaks from becoming major failures.

New Equipment Commissioning: Before putting new switchgear into service, detectors verify that SF6 is properly sealed, ensuring no leaks from manufacturing defects (e.g., faulty welds).

Fault Diagnosis: If switchgear exhibits abnormal behavior (e.g., tripping, unusual noises), the detector helps pinpoint leaks as a potential cause, reducing troubleshooting time.

Long-Term Monitoring: Fixed SF6 detectors (installed directly on switchgear) provide 24/7 real-time monitoring. They trigger alarms (audible/visual or remote notifications) when leakage exceeds thresholds, ideal for critical substations requiring continuous oversight.

4. Maintaining Your SF6 Detector for Long-Term Reliability

To ensure your SF6 detector for high voltage switchgear delivers accurate results, regular maintenance is essential:

Calibrate Annually: Environmental factors (temperature, humidity) can drift sensor accuracy. Calibrate the detector against a certified SF6 gas standard yearly to maintain precision.

Clean Sensors Regularly: Dust, oil, or SF6 byproducts can contaminate sensors. Follow the manufacturer’s guidelines to clean or replace sensors (typically every 2–3 years).

Check Power & Storage: For handheld models, keep batteries charged and store the detector in a dry, temperature-controlled area. Replace aging batteries to avoid unexpected shutdowns during inspections.

Update Firmware: Manufacturers often release firmware updates to improve performance or add features. Keep the detector’s software up-to-date for optimal functionality.

An SF6 detector for high voltage switchgear is more than a tool—it’s a safeguard for power grid efficiency, environmental compliance, and human safety. By choosing a detector with high precision, rugged design, and user-friendly features, and maintaining it properly, power utilities and industrial facilities can minimize SF6 leaks, reduce operational risks, and align with global sustainability goals. As power grids grow more complex, investing in reliable SF6 detection technology remains a critical step toward building resilient, eco-friendly energy systems.
